Category: ONDA

Description Size : 1/2″ Quantity ( pcs/dus, pcs/kotak ) : 72/3

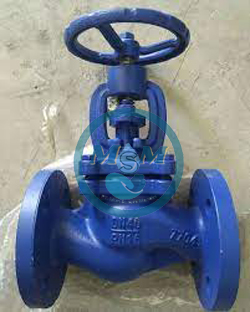

Materials : Body Cast Iron Bonnet Cast Iron Disc  Cast Iron Gland Flange Cast Iron Stem  SS240 Stem Nut Brass Bonnet Gasket Graphite + Steel Body Ring SS304 Packing Graphite  Handwheel Ductile Iron Ball SS304 Pressure Test to ISO5208 DN 50 Pressure rating ( PN ) : 16 Hydro Test Pressure (MPa) :body : 2.4seat : 1.76 Dimension : Size : 2 inch BS EN558 ( L ) : 230 H ( Open ) : 261 En1092– D : 165– … Continue reading “Globe Valve Onda PN 16 DN 50”

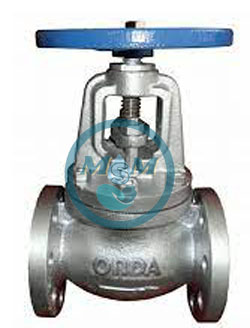

Material JIS 10 FCJ Body FC20 Bonnet FC20 Stem C3771BD Disc (Size) FC20 Seat Ring BC6 Lock Nut BC6 Gland FCD-S Gland packing Asbestos-free Handwheel FC25 Washer SS41 Gasket Asbestos-free Gland bolt/ nut SS41 Bonnet bold/ nut SS41 Detail : 120 °C Non – shock water ……….. 14 kgf/ cm 120°C Non-shock water ………………… 10 kgf/cm Saturated Steam …………….. 7 kgf/ cm Hydrostatic shell test …………….. 21 kgf/ cm Hydrostatic seat test …………………………….. 154 kgf/ cm

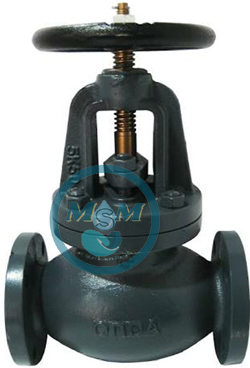

Materials : Body : Cast Iron Bonnet : Cast Iron Stem : Brass Disc : Cast brass Gland packing : PTFE Hand wheel : Cast Iron Gasket : Asbestos – free Detail : Working pressure ………………. 6 kgf/cm Hydrostatic shell test ………………. 10.6 kgf/cm Hydrostatic seat test ……………… 7.7 kgf/ cm Dimension : Valve Size : 50 mm 2 inch L : 210 H : 253 D : 160 Berat : 13.4 kg

Materials : Body : FCD-S Bonnet : FCD – S Stem : SUS 420 J2 Disc : SUS 403 Body Seat Ring : SUS 403 (2-1/2″) and 3 : SCS 1) Gland : SUS 403 (1/4″ – 3/4″ : SUS 420J2) Glad packing : Asbestos – Free Packing Nut : FCD – S Handwheel : FCD 450-10 (2-1/2″ and 3″ : FCD 400-15) Wheel Nut : SS400 Gasket : Asbestos- Free Bonnet Ring : FCD-S Name Plate : A1050P Detail … Continue reading “Globe Valve Onda Ductile Iron JIS 10K 1 Inch”

Materials : Body : FC30 Bonnet : FC30 Stem : C3771BD Disc : FC30 (1″ : bc6) Seat Ring : BC6 (2″ and larger) Gland : FCD -S Glad packing : Asbestos – Free Gasket : Asbestos – Free Gland bolt/nut : SS41 Bonnet bolt/nut : SS41 Indicator : 2DC Detail : 120 derajat celcius Non-shock, oil gas….10 kgf/cm Saturated Steam …………………………………. 7 kgf/cm Hydrostatic shell test ……………………….. 21 kgf /cm Hydrostatic seat test …………………… 15.4 kgf/cm Dimension : Valve … Continue reading “Gate Valve Onda Cast Iron JIS 10K 2 Inch”

Materials : Body : Cast Iron Bonnet : Cast Iron Stem : Brass Disc : Cast Iron Welding Copper Set Ring : PTFE Gland : ductile Iron Gland Packing : PTFE Gasket : Asbestos – Free Indicator : Aluminium Hand Wheel : Cast Iron Detail : Working pressure ………………………. 6 kgf/cm Hydrostatic shell test ……………. 10.6 kgf/cm Hydrostatic seat test ……………….. 7.7 kgf/ cm Dimension : Valve size : 50 mm 2 inch L : 180 H : 250 D … Continue reading “Gate Valve Onda Cast Iron JIS 5K 2 Inch”

Materials : Wheel nut : Brass Name Plate : Al name plate Handle : Iron Pandle : Brass Glang : Brass Packing : PTFE Lock Nut : Brass Bonnet : Brass Seal : PTFE Stem : Brass Steem : Brass Body : Brass Dimension : A 115 B : 40 C : 110 D : 153 E : 15 F : 99 G : 12 H : 4 – 19 J : 105 K : 140 DN : 37 PCD/U … Continue reading “Gate Valve Flange Brass 10K Onda 2 inch”

Keunggulan Water Meter : Meteran Kering Tahan Lama Berkualitas Harga kompetitif Specification Product : Diameter Size 80 mm 3 Inch Class B Qs Overload Flow  80 m3/h Qp Nominal Flow 40 m3/h Qt Transitional Flow 8 m3/h Q min Min Flow 1.2 m3/h Starting Flow 280 litre / Hours Minimum Reading 0.01 m3 Maximum Reading 9999999 m3

Keunggulan Water Meter : Meteran Kering Tahan lama Berkualitas Harga Kompetitif Specification Product : Diameter Size 100 mm 4 Inch Class B Qs Overload Flow 120 m3/h Qp Nominal Flow 60 m3/h Qt Transitional Flow 12 m3/h Qmin Min Flow 1.8 m3/h Starting Flow 400 Litre/ Hours Minimum Reading 0.01 m3 Maximum Reading 9999999 m3
