Category: Pompa Pedrollo

Specification Product ; Power   kW 2×2.2 HP 2*3 Flow Rate (Q) m3/h : Total Manometric head = metres   0 87 0.6 86 1.2 85.5 2.4 85 4.8 82 7.2 78 9.6 73 12 67 14.4 60 15.6 57 16.8 53 19.2 45 21.6 36 24 26 Flow Rate (Q) l/min : Total Manometric head = metres   0 87 10 86 20 85.5 40 85 80 82 120 78 160 73 200 67 240 60 260 57 280 … Continue reading “Pompa pedrollo CB2-PLURIJET 6/200”

Specification Product : Power   kW 2×4 HP 2*5.5 Flow Rate (Q) m3/h : Total Manometric head = metres   0 46 18 43 36 38 72 34 Flow Rate (Q) l/min : Total Manometric head = metres   0 46 300 43 600 38 800 34 Ports   Inlet 100 Outlet 80 Berat Three Phase 161.0 kg

Specification Product : Power   kW 2×5.5 HP 2*7.5 Flow Rate (Q) m3/h : Total Manometric head = metres   0 52 18 50.5 36 45 72 41 Flow Rate (Q) l/min : Total Manometric head = metres   0 52 300 505 600 45 800 41 Ports   Inlet 100 Outlet 80 Berat Three Phase 173.0 kg

Specification Product : Power   kW 2×7.5 HP 2*10 Flow Rate (Q) m3/h : Total Manometric head = metres   0 60 18 56.5 36 53.5 72 50 Flow Rate (Q) l/min : Total Manometric head = metres   0 60 300 56.5 600 53.5 800 50 Ports   Inlet 100 Outlet 80 Berat Three Phase 181.0 kg

Specification Product : Power   kW 2×5.5 HP 2*7.5 Flow Rate (Q) m3/h : Total Manometric head = metres   0 48 18 46.5 36 42 72 34 Flow Rate (Q) l/min : Total Manometric head = metres   0 48 300 46.5 600 44.5 800 42 1200 34 Ports   Inlet 100 Outlet 80 Berat Three Phase 182.0 kg

Specification product : Power   kW 2×7.5 HP 2*10 Flow Rate (Q) m3/h : Total Manometric head = metres   0 56 18 55 36 54 72 46 Flow Rate (Q) l/min : Total Manometric head = metres   0 56 300 55 600 54 800 52.5 1200 46 Ports   Inlet 100 Outlet 80 Berat Three Phase 189.0 kg

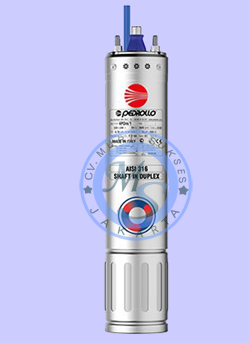

Specification Product ; Model   (230V/50 Hz) 4PDm/0.50 Rated Power P2 0.37 kW 0.50 HP Axial load (N) 1500 Revs (1/min) 2800 Starting Current/ Rated Current 2.6 Efficiency (ɳ) 60% Power factor (cos φ) 0.94 Rated Torque (Nm) 1.3 Starting Torque/ Rated Torque 0.7 Capacitor (Vc-450V) µF 16 h (mm) 304 Weight 7.3 kg Voltage 3.1 A

Specification Product : Model   (230V/50 Hz) 4PDm/0.75 Rated Power P2 0.55 kW 0.75 HP Axial load (N) 1500 Revs (1/min) 2803 Starting Current/ Rated Current 2.9 Efficiency (ɳ) 62% Power factor (cos φ) 0.95 Rated Torque (Nm) 1.9 Starting Torque/ Rated Torque 0.74 Capacitor (Vc-450V) µF 20 h (mm) 329 Weight 8.6 kg Voltage 4.9 A

Specification product : Model   (230V/50 Hz) 4PDm/1 Rated Power P2 0.75 kW 1 HP Axial load (N) 1500 Revs (1/min) 2824 Starting Current/ Rated Current 3 Efficiency (ɳ) 63% Power factor (cos φ) 0.85 Rated Torque (Nm) 2.5 Starting Torque/ Rated Torque 0.72 Capacitor (Vc-450V) µF 31.5 h (mm) 354 Weight 9.7 kg Voltage 6.4 A

Specification Product ; Model   (230V/50 Hz) 4PDm/1.5 Rated Power P2 1.1 kW 1.5 HP Axial load (N) 2500 Revs (1/min) 2825 Starting Current/ Rated Current 3.1 Efficiency (ɳ) 62% Power factor (cos φ) 0.9 Rated Torque (Nm) 3.7 Starting Torque/ Rated Torque 0.82 Capacitor (Vc-450V) µF 40 h (mm) 434 Weight 12 kg Voltage 8.6 A
