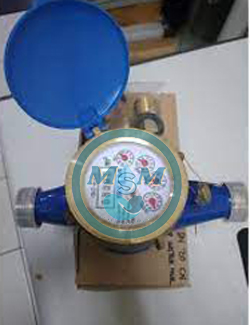

Analog/ Mechanical Brass Multi Jet Vane Wheel Dry Dial Cold 50°C and Hot 90°C Clean water Meter Size DN 15-DN 50 (1/2″-2).
Description :
SHM Multi Jet Brass Flow Meters : Analog/ Mechanical Flow Meter For Clean Water are made from brass material and nternal measuring component made from modern thermoplastic.
Application :
SHM Multi Jet Brass Flow Meters can be used for :
- Irrigation, cooling systems, filtration systems, water monitoring, residential, etc.
Features :
- Multi Jet, Dry Dial, Turbine type
- Magnetic Drive reliable characteristic, long working life, Pulse output optional
- Vacuum sealed register ensures the dial keep free from fog and frost, keep the reading clear in along term service
- Working temperature 0.1-50°C for cold water and 0.1-90°C for hot water
- Water pressure </-1.0 Mpa or 1,6 Mpa
- Maximum Permissible Error
- In the lower zone from qt is +/-5%
- In the upper zone from qt inclusive up to and qs is +/-2%. For hot water meter +/-3%
- ISO 9001 and 4064
- Warranty 2 years (full service and spare parts)
Specification Product :
| Size (DN) | 20, 1 inch, (20 mm) |
| Overload Flow Qs | 3 m3/h |
| Permanent Flow Qp | 1.5 m3/h |
| Transitional Flow Qt | 120 m3/h |
| Minimum Flow Qmin | 30 m3/h |
| Minimum Reading | 0.00005 m3 |
| Maximum Reading | 99.999 m3 |
| Dimension | |
| Length (L) | 165 mm |
| Width (B) | 98 mm |
| Height (H) | 116 mm |
| Weight (H) | 1.65 kg |
